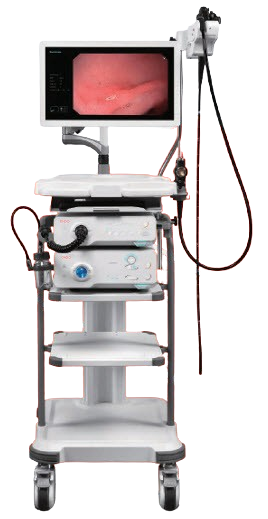

Video Endoscope System V7
Innovation rewrites the standard. With that in mind, ENDO Indonesia presents you the ENDO EI.EC.v7, a brand new high definition endoscopy system designed specifically for screening and diagnosis wuth an excellent budget friendliness.
CMOS
With the CMOS image sensor, ENDO EI.EC.v7gives high quality images with low noise levels, which leads to improved clarity and optimized vision in not only routine procedures but also in complex interventions
Smart Worklflow
To increase efficiency, patient data managemenr is accessible with the press of button. The smart worklflow of the built-in workstation of ENDO EI.EC.v7 helps doctors to edit reports, record videos and manage patient files with ease.
Clean and Clear
The waterjet function of the scopes helps to manintain a clear endoscopic view by washing away blood or mucous.
|
ENDO EI.EC.v7 Video Endoscope System |
|
|
HD video outputs |
DVI, VGA |
|
Standard video outputs |
S-Video, CVBS |
|
HD video recording |
Built-in workstation, timely record and review |
|
Zoom / PBP |
Yes / Yes |
|
Dimension (L x W x H / weight) |
455mm × 370mm × 124mm / 9.5 kg |
|
ENDO EI.LS.v7 Light Source |
|
|
Main lamp |
50W LED |
|
Transparency function |
7 seconds maximum brightness flicker |
|
Lifetime indicator |
Yes |
|
Hot plugging |
Endoscope switch without powering off |
|
Dimension (L x W x H / weight) |
460mm × 370mm × 154mm / 11 kg |
|
430 Series Scopes |
||||||
|
Parameter |
Gastroscope |
Colonoscope |
||||
|
EG-430 |
EG-430L |
EC-430 |
EC-430T |
EC-430L |
EC-430L/T |
|
|
Depth of view (mm) |
3–100 |
3–100 |
||||
|
Field of view |
140 |
140 |
||||
|
Distal end diameter (mm) |
9.3 |
9.8 |
12 |
12 |
12.9 |
12.9 |
|
Bending section diameter (mm) |
9.3 |
9.8 |
12.5 |
12.5 |
12.9 |
12.9 |
|
Instrument channel diameter (mm) |
2.8 |
3.2 |
3.8 |
4.2 |
||
|
Angulations |
UP 210 / DOWN 90 LEFT 100 / RIGHT 100 |
UP 180 / DOWN 180 LEFT 160 / RIGHT 160 |
||||
|
Working length (mm) |
1050 |
1350 |
1700 |
1350 |
1700 |
|
|
Total length (mm) |
1350 |
1700 |
1950 |
1700 |
1950 |
|
