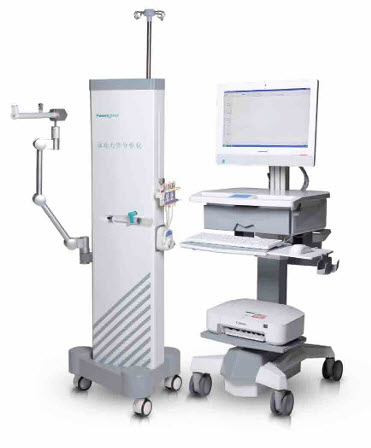

Potent Urodynamic Analyzer System
Urodynamics is a subdiscipline of urinary surgery. It mainly studies the function and mechanism of urinary tract, and pathophysiology changes of voiding dysfunction. Nowadays, urodynamic analysis is a common means for analysis of urinary surgery. It gradually replaces subjective diagnosis since 1980s and provides scientific basis for diagnosis and treatment of common diseases of urinary surgery.
Applications
- Measurement programs according to ICS standards
- Pressure-flow-measurement
- Urethra-pressure-profiles
- Uroflowmetry
- Cystometry
- Leak point pressure
- Animated biofeedback
- EMG (Electromyography)
Features
- Full range of analysis
- Alarm doctor automatically when urinary bladder pressure > 40cmH?O
- Stop filling automatically when urinary bladder pressure > 150cmH?O
- Measures bladder contractility non-invasively
- Reduces the number of cystometry tests and associated risks
- Clinically proven
- Saves time and money
- Increases the success rate from TURP
- Powerful data management system
- Analysis at the touch of a button
- Modular pump and puller
- Wireless uroflowmeter
- Updatable to video urodynamic system
Technical Data
|
Items |
Details |
|
Uroflowmetry measuring range |
a) Flow: 0mL~1000mL, Error range ±2% |
|
Pressure measuring range |
Pressure: -50cmH?O (-4.9kPa) ~ 200cmH?O (19.6kPa) |
|
Dragger |
a) Length: ?280mm |
|
Filling pump |
Range of filling rate: 2mL/min~10mL/min (1mL/min each time) |
|
Syring pump |
Injection speed: 2mL/min~5mL/min (1mL/min each time), error range ±3% |
|
EMG testing |
a) Range for response: 20?V~1mV |
|
Compliance |
All the tests comply with standards of the ICS |
